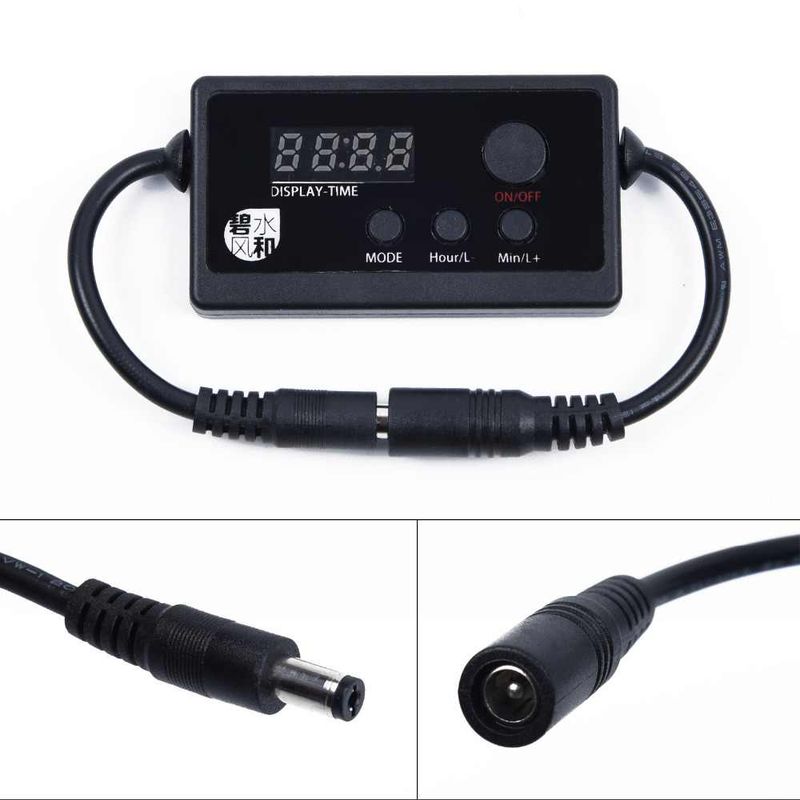

Sun Riser max 100w
simulere sol oppgang og solnedgang i akvariet
Installation:
Before the installation, confirm the power supply and power of the lamp, which is lower than 100W. Check the interface of the lamp (5.5mm DC master lock), and connect the modulator in series between the lamp and the power supply.
Step 1: Open the package and remove the dimmer.
Step 2: Connect the dimmer to the LED lamp.
Step 3: Plug in the power to automatically turn on the dimmer.
Step 4: Set the dimmer parameter.
Key function description:
1. ON/OFF
Switch the light on/off.
Long press enter time to adjust the interface, by pressing + and - adjusting hours and minutes.
Press "M" to exit time setting.
2. MIN/L+
Brightness increased
3. HOUR/L-
Brightness decrease
4. MODE
Press the manual/automatic switch, long press into the timer setting.
NO-1 and time cycle flicker, through + and - for the first set of time Settings.
Press MODE key again, L000 flicker, through + and - for the first set of brightness Settings.
Then press MODE key, NO-2 and time cycle flicker, through + and - to set the second set of time.
Press MODE key again, L000 flicker, through + and - to set the second set of brightness Settings.
In this way, 8 sets of data are set. Press MODE to exit after setting.
P.S. If the time is set to "-- : --", the data on behalf of the group does not work.
5. Display
L00*/ time back and forth indicates that the system is in manual state.
ATUO/ time shows that the system is in an automatic state, and the system automatically enters the automatic state by default.
In automatic state, you can intervene manually.
(for example, turn on the light in the automatic state when the light is turned off, and keep on going until the next automatic cycle arrives).
